Captain Kurt submitted a new resource:

TICKMARKs.XLS.zip - TICKMARKs.XLS.zip

TICMARKS2.XLS (version 2.0 May 1, 2023) Bug Fix

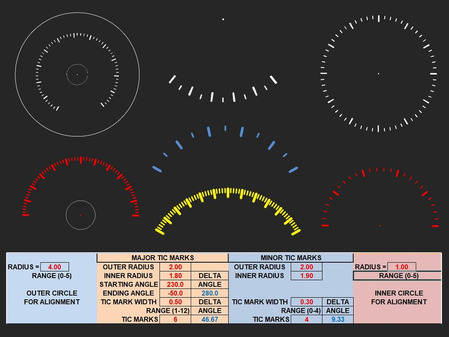

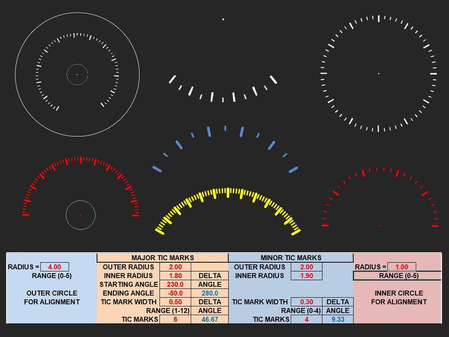

This is a simple Excel program to create tic-marks for building gauges. All the required inputs are in red color. The two circles are used for alignment. It can be toggled off. The radial size, number of tic-marks, and size of the tick-marks are data inputs (shown in red) in the Excel program.

This is a copyrighted freeware program. FREE DISTRIBUTION ONLY.

Andrew
View attachment 97238
